产品参数/ Product parameter
灵活夹持应用
一如我们其他的产品，B-TOP的的夹具设计同样让您拥有超大的生产弹性。高效率的爪楔齿条机赋予夹具高重覆精度的快换爪特性。内孔的衬套系统亦多有助益， 它使夹具可轻易变换，以符合工作上的需求：推杆机构关闭、喷嘴或是搭配各式的止动器，符合工作上的需求。工作上若有更高的需求， B - T O P 3 夹具可简易替换搭配成内孔夹持或S P A N N T O P系统的外径夹持。全系统符合H A I N B U C H模块化夹具设计，无需拆解夹具本身。
优势：
●通孔衬套或止动器轴套，可由前方更换。
●独特的解锁设计，可快速换爪兼具高替换精度。
●换爪时间短，操作安全性高。
●稳定的爪楔齿条机构。
HIGH FLEXIBILITY IN SMALL QUANTITIES

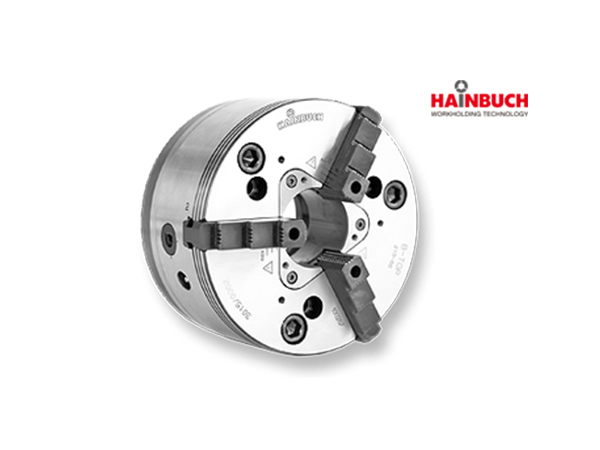

Fast jaw change with quick change design and high repeatability – that is what makes the B-Top jaw chuck product line so flexible. Particularly for small lot sizes. Thus in most cases machining the chuck jaw to size is unnecessary.
Flexibility with system
Also the insert bushing system is configured for small lot sizes and maximum flexibility. It enables clamping devices to be conveniently adapted to your requirement: Closed with ejector, spray nozzles, or with variable end-stop. Just the way you need it.
Key advantages
●Large through-bore with passage bushings or end-stop bushings that can be changed from the front
●Fast jaw change with individual unlocking at high change-over accuracy and suitable for the »Reishauer« system, straight gear cutting
●High degree of operator safety with minimum change-over time
●Proven wedge rod mechanism
