产品参数/ Product parameter
您未曾有过的方便与快速！

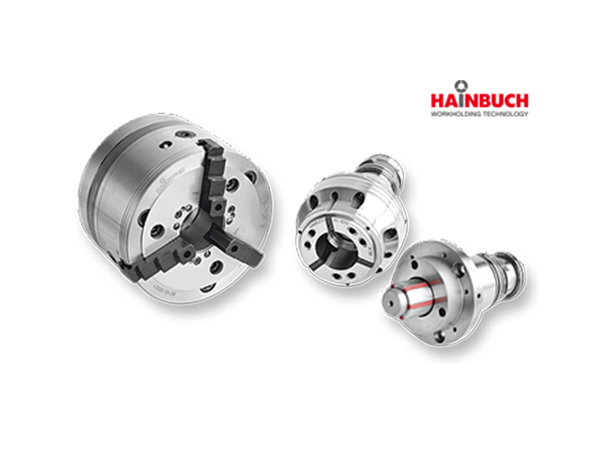

三合一夹头，具备三爪夹头、夹具王套筒夹头、反张套筒夹头，三位一体。更换不同夹头，不需要将原三爪夹头从机械卸下，你将因此可以采用各种有利的夹持方式，因为它们全部被设计在一体了。
当需要做反张夹持时，采用反张模块式夹头，可以快速换模，精密正确内孔夹持。
你将惊喜于此系统的精密夹持工件，同心度将低于0.005 mm 。藉由centrex ( 桑德瑞斯系统) 将反张模块夹头正确的定位在原夹头主体上，因此，可以扩大拉长与竞争对手在效率上的较劲，当他还正忙着更换夹头。你已经
轻松地正进行生产加工。
真正的革新是可以将套筒式夹具王系统也安装到比托普夹头上，这正是客户所期待与盼望的系统，正确而简单。您曾有过如此的方便与快速吗！
目前，以B-Top3-215 可以具三合一功能，配合SP65 通孔夹头与曼多反张模块夹头( size0 ～ 4)，外径大通孔62mm，内径反张范围13mm ～ 150mm
B-TOP的相关数据：
●夹持力90KN ( 近似9,000kg )
●转速，每分6,000rpm
●通孔径62mm
●可达夹爪行程7.4mm
●一套直齿的主爪、板手、法兰、保护爪与反张夹头、套筒夹头的连接界面
FLEXIBILITY THANKS TO THE MODULAR SYSTEM
I.D., O.D. or jaw clamping – it's easy with the B-Top3 modular system. Everything fits together. With the MANDO Adapt segmented mandrel, you can change to perfect I.D. clamping in less than 2 minutes. The SPANNTOP adaptation is the right partner if you have reached your holding power and accuracy limits for O.D clamping. And all without removing the chuck!
Basic clamping for small lot
The B-Top3 basic clamping device also has its advantages: The fast jaw change with single-jaw unlocking mechanism and high repeatability is ideal for small lot sizes. Thus, in most cases machining the chuck jaw to size is unnecessary.
Flexibility with system
Also the insert bushing system is configured for small lot sizes and maximum flexibility. It enables clamping devices to be conveniently adapted to your requirement: Closed with ejector, spray nozzles, or with variable end-stop. Just the way you need it.
Better clamping force
And the new innovative lubricating system ensures improved clamping force behavior of the wedge bar principle.
You have never turned like this before.
Key advantages
●Extremely fast conversion [2 min.] to I.D. clamping with the MANDO Adapt mandrel-in-clamping-device or to O.D. clamping with the SPANNTOP Adapt chuck
●Through-bore passage bushings or end-stop bushings that can be changed from the front
●Fast jaw change with individual unlocking at high change-over accuracy and suitable for the »Reishauer« system, straight gear cutting
●High degree of operator safety with minimum change-over time
●Proven wedge rod mechanism
